Grade-MBBM

Weather Shield India Heat Reflective Thermal Pallet Cover for Temperature Sensitive Pharmaceuticals Air Shipments

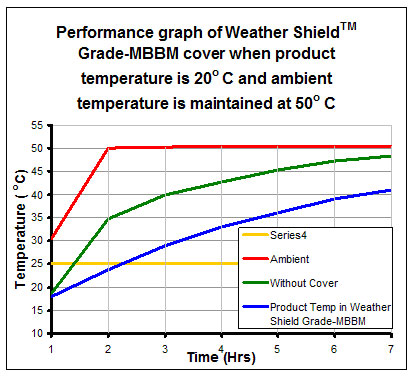

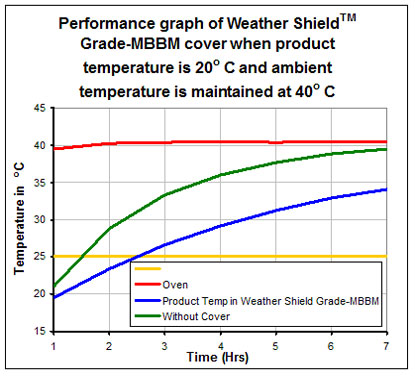

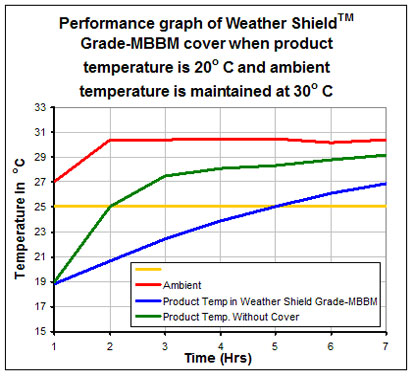

Graphical Summary of 3rd Party Study Report
Specifications Value Unit Method
Thickness 6 mm  -
Weight 410 gsm  -
Thermal Conductivity  0.04 K.cal./h.m.oC ASTM C177
Compression Resistance 944 Kgf  -
Temperature Resistance No Change At 90oC for 3 hours  -
Heat Reflectivity > 98  % AS/NZS 4200.1
Water Barrier High  -  AS/NZS 4200.1

The working principal :

  • Both side heat reflective surface that reflects heat up to 98% on both side
  • 6mm still air gap to resist heat transfer through conduction
  • Multi-layered construction

Key features :

  • Each cover is made to order
  • Oversized bottom portion
  • Self-adhesive supporting edge tapes for easy & quick installation

Basic Material used :

  1. PE
  2. Aluminum Foil
  3. PET
  4. Nylon Threads


* The performance of the grade is indicative and is subjected to change with external temperature, humidity, direct sunlight, and wind flow.
* Weather Shield India reserves right to change the specifications and construction of grade without prior notice.
