Grade-MBW

Weather Shield India Heat Reflective Thermal Pallet Cover for Temperature Sensitive Pharmaceuticals Air Shipments

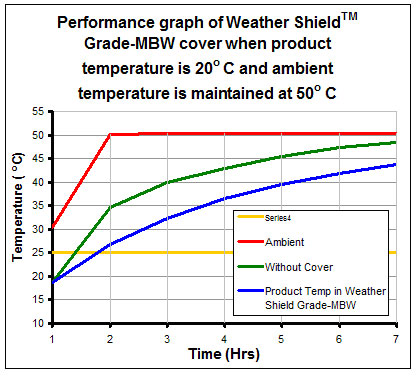

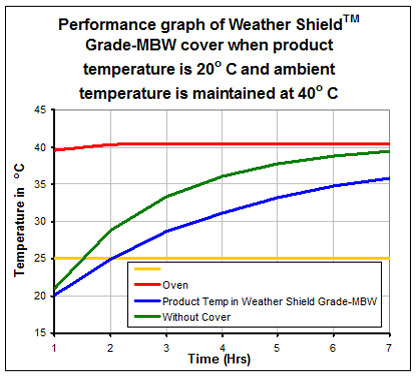

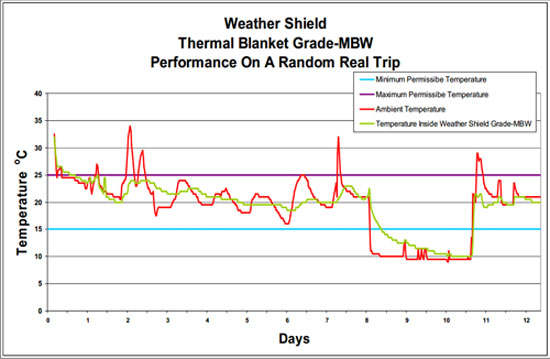

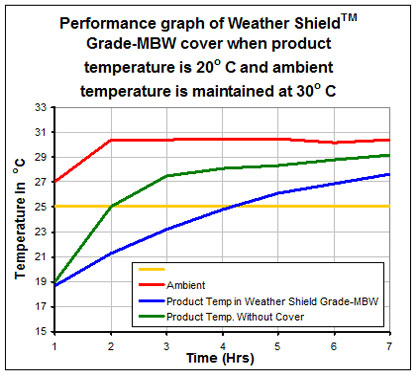

Graphical Summary of 3rd Party Study Report
Specifications Value Unit Method
Thickness 3 mm  -
Weight 230 gsm  -
Thermal Conductivity  0.316 w/mk ASTM E 1530
Temperature Resistance No Change At 90oC for 3 hours  -
Heat Reflectivity > 98  % AS/NZS 4200.1
Water Barrier High  -  AS/NZS 4200.1

The working principal :

  • Heat reflective surface that reflects up to 98% radiative heat
  • 3mm still air gap to resist heat transfer through conduction
  • Multi-layered construction

Key features :

  • Each cover is made to order
  • Oversized bottom portion
  • Self-adhesive supporting edge tapes for easy & quick installation

Basic Material used :

  1. PE
  2. Aluminum Foil
  3. PET
  4. Nylon Threads


* The performance of the grade is indicative and is subjected to change with external temperature, humidity, direct sunlight, and wind flow.
* Weather Shield India reserves right to change the specifications and construction of grade without prior notice.
